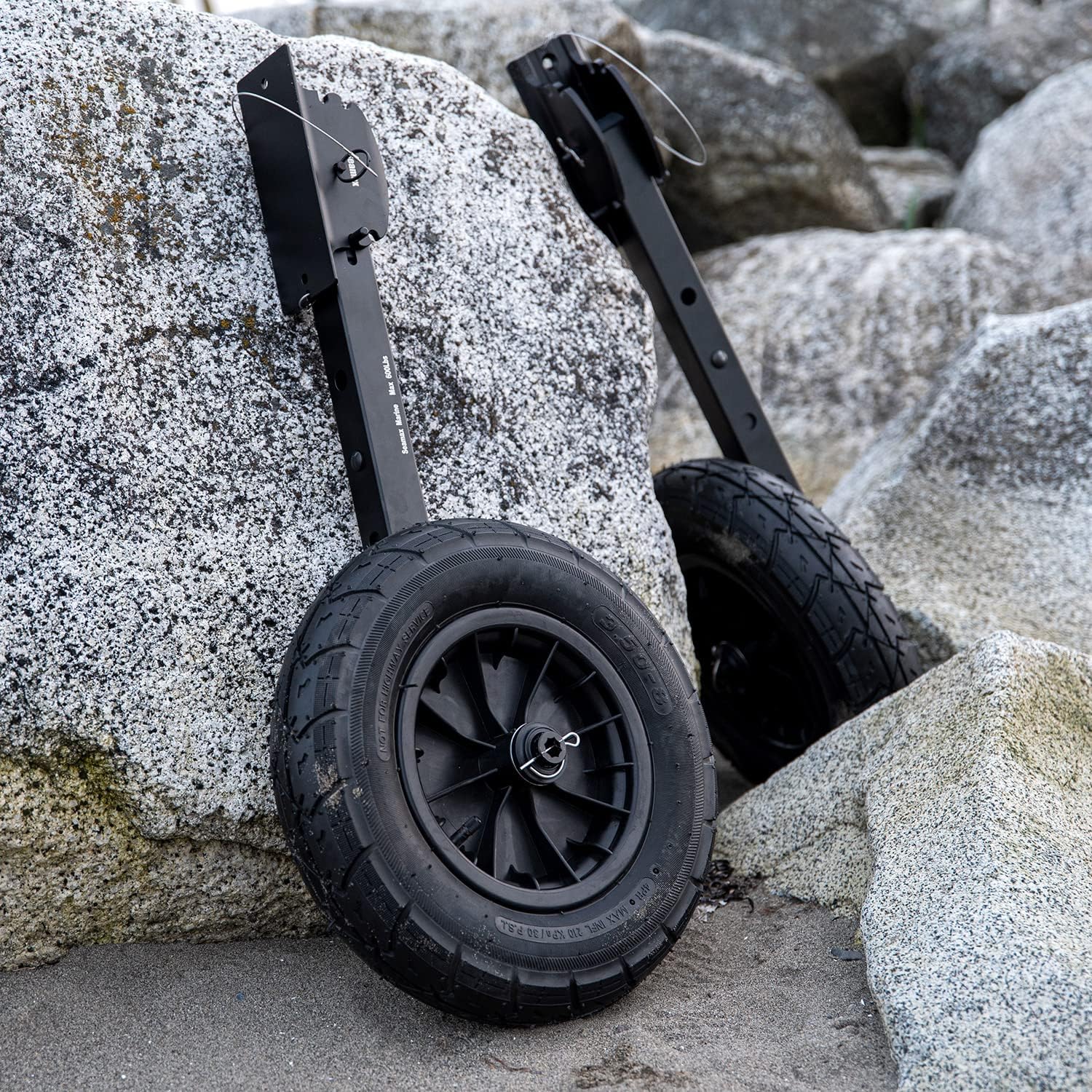

Seamax Deluxe Boat Launching Wheel System, Black Military Edition, 4 Positions and 4 Stages Removable and Adjustable Legs, 14" Pneumatic Wheels. Max Support Water Craft Weight 600Lbs

Seamax Military Version Deluxe Boat Launching Wheel System is an upgraded version in our Seamax dolly family. It is military-grade with All Black design and with upgraded component. Originally standard version designed with 3D-work by Seamax Marine back in 2011, Now this military edition released in 2021. If you are looking for the best launching dolly system with a classic military style instead, we highly recommend this Seamax Military-Grade Outdoor Deluxe Boat Launching Wheel System. Besides its strength, this one has a premium look and elegant design for military fan. Seamax Deluxe Boat Launching Wheels system is made by the marine grade T6 aluminum alloy with CNC processing and shiny looking anodized coating against the corrosion. Thus, the product is good for saltwater use. Small parts are all made by solid stainless steel and reinforced Nylon. The air-filled tire is lab-tested (1000 LBS), and is great to support a MAX loading of 600 LBS in all condition. A great add-on for inflatable, aluminum, and fiberglass boats.

• BENEFIT of its new design - With the 4 stages of length and 4 wheel arm position, the dolly can be adjusted while afloat in the boat, leaving or coming into the dock. The dolly system can also bring different performance positions for boat launching. The wheel arm length increment is 2.5” per stage. Plus the wheel’s diameter, the range of length is 23 - 30 inches.
• The wheel arm has 60° and 90° locking position to move up and down. The upper-60° position can free up more space on the top and side of the transom. The lower 60° position lets the wheels run at the same level as the prop, and thus turns the wheels as a prop guard when boat launching.
• The transom bracket installation area is about 8 x 3 inches. Shorter transom bracket design brings more possible installation for all type of boats with different transom. The brackets can be installed at the waterline top position, so to avoid the water comes into the screw holes. We had developed a profile for the transom bracket in 2019. Now the bracket only requires 2 bolts to install. Easier to put it on your boat with the same loading capacity.

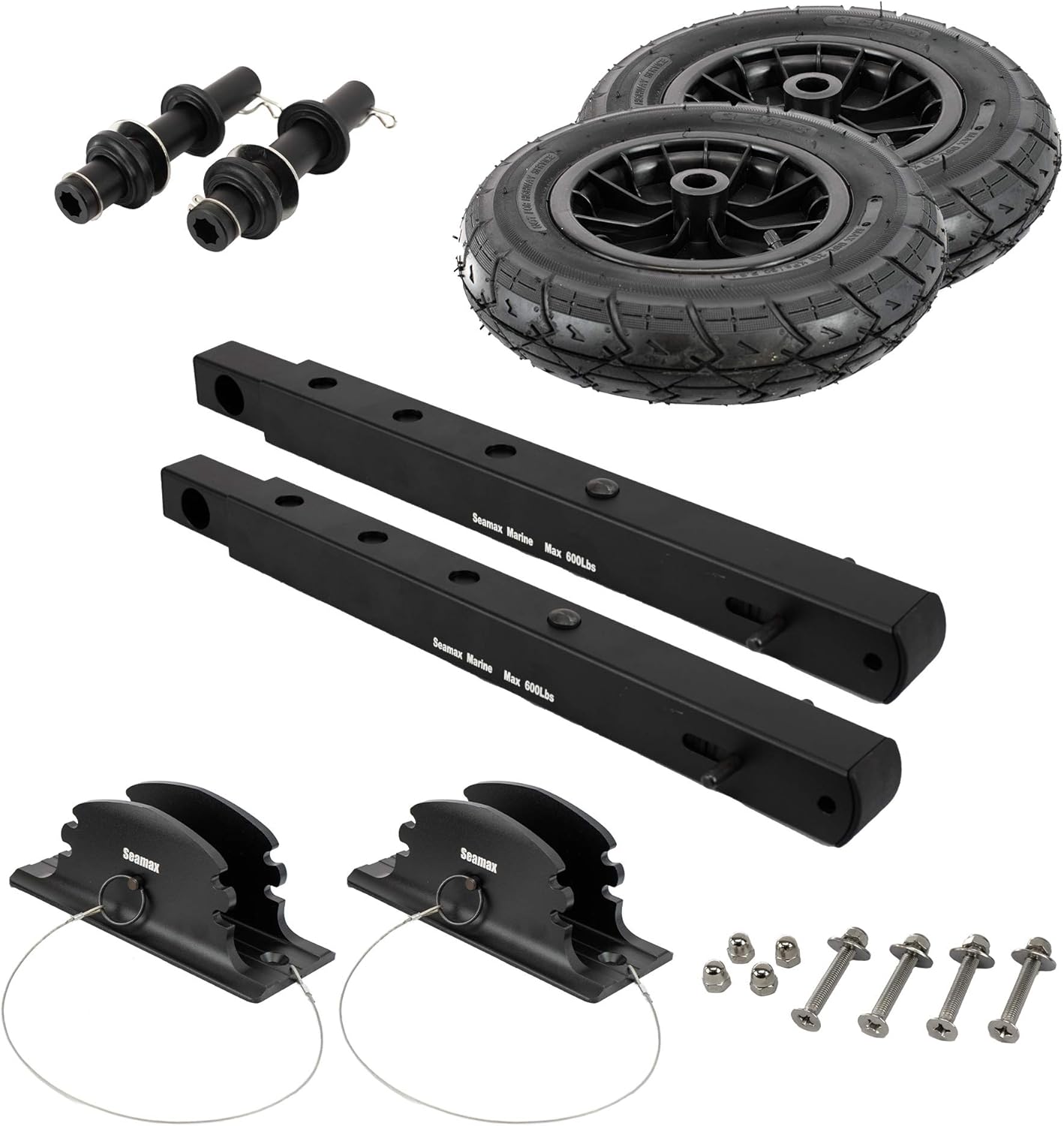

• TRIPLE heavy duty, TRIPLE quality! Product is made by Seamax Canada with 2 years limited warranty and 100% Customer Satisfaction guaranteed! The Quick Operation Features of the Deluxe Boat Dolly include - spring load locking pin for wheel arm position adjustment; solid spring load buttons for wheel arm length adjustment; and quick released lock pin for wheel arm and wheel bearing.
• Our new tires are now 14” in diameter and about 4” wide. They are made of 4 ply reinforced vehicle grade natural rubber which holds up well against UV rays, heat and salt water for up to ten years. To prevent air loss, we use an advanced butyl inner tube for our wheels with an “L” style cooper air valve. The rim is made of reinforced nylon with a 1” diameter hole for the axle with NO bearing as this product is made for marine use. These high quality marine grade tires and rims will last you for
