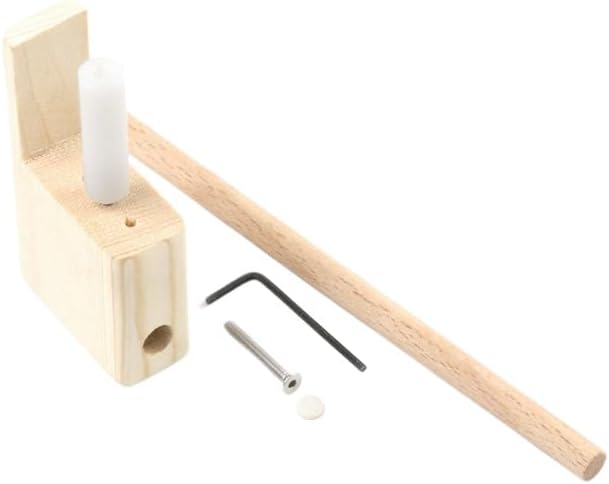

Guitar Bridge Doctor Soundboard Support Tool for Musical Instrument Manufacturing and Repair Precision Bridge Plate Stabilization Used in Acoustic Guitar Workshop Maintenance (Brass pin mount)

This guitar bridge doctor is developed to connect structural support design with real acoustic guitar manufacturing and repair demands. The tool provides internal reinforcement to the bridge plate and soundboard area, supporting stable load distribution under string tension. Designed for workshop installation, it integrates into standard guitar building and servicing workflows without altering external appearance. The form supports controlled placement to maintain soundboard geometry during long term use. By aligning internal support structure with instrument construction needs, this tool supports consistent bridge area stability across manufacturing, setup, and maintenance scenarios.

• Soundboard Support Function Designed as a guitar bridge doctor tool to support the soundboard and bridge plate area. The structure assists in maintaining proper load distribution across the top during string tension and long term instrument use.
• Bridge Plate Stabilization The tool provides internal support to the bridge plate region, helping control movement and deformation. This supports stable geometry during manufacturing, repair
• Manufacturing and Repair Use Intended for use in musical instrument manufacturing and repair processes. Integrates into acoustic guitar construction and servicing workflows where bridge area reinforcement and structural consistency are required.
• Precision Installation Designed for controlled placement inside the guitar body. The form supports accurate positioning relative to the bridge area, allowing predictable interaction with soundboard and internal bracing during installation.
• Application Scenarios Suitable for acoustic guitar building, bridge area support, and structural maintenance. Designed for professional workshop environments where long term soundboard stability and bridge plate alignment are required.
