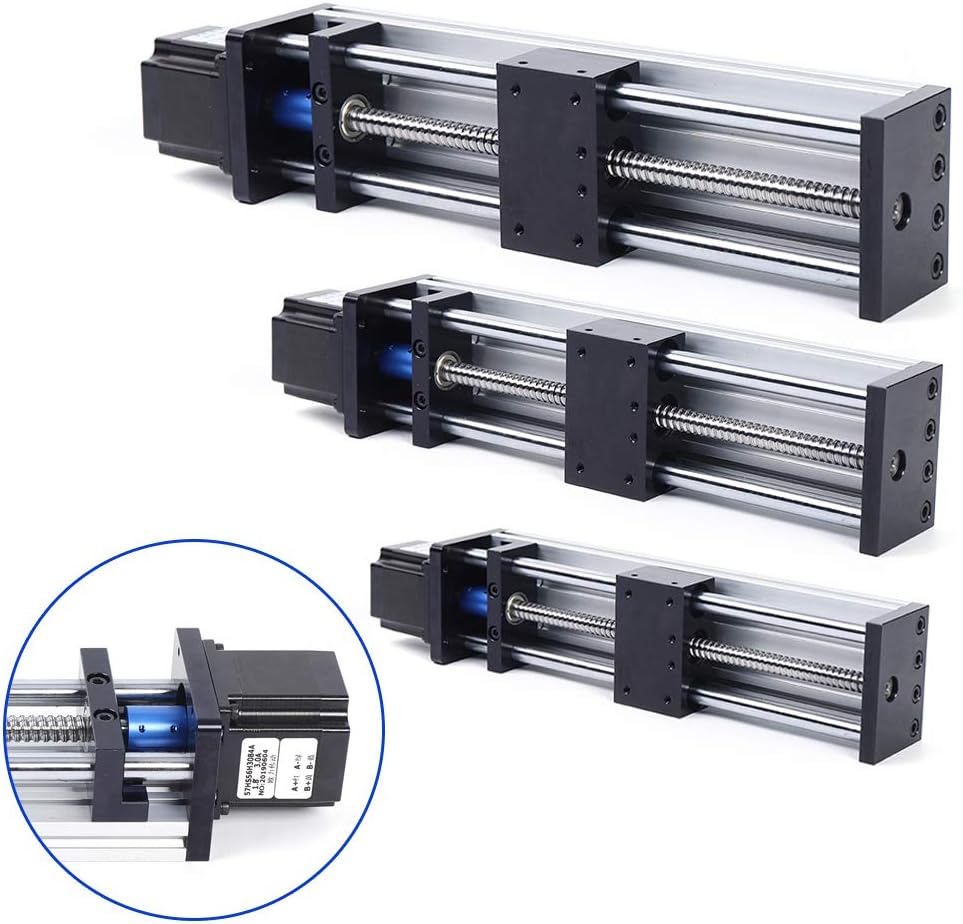

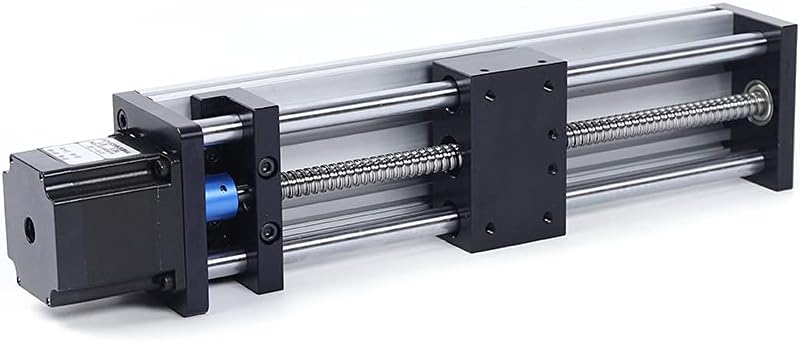

Linear Guide Rail Slide Stage Table with 23 Nema Stepper Motor, Linear Stage Actuator, Linear Slide Guide Rails Ball Screw Guide Sliding Table Slide Rail 200/100mm Stroke (200mm)

Features:Model: GgpEffective Stroke: 100mm /200mmAccuracy: 0.03mmBallscrew Diameter: 12mm; Lead: 4mmSpeed:40-100mm/SHorizontal Load: 30kg-max 50kgVertical Load: 15kgNema 23 Stepper Motor;Diameter 57 * 56mmVoltage: 24vCurrent: 3aTorque: 0.9nmLead: 4mm (One Turn of the Screw Rod)Product Clearance: 1-2mm Package Included:1pc Ball Screw Guide Sliding Table1pc 23nema Stepper Motor

• 【Product Parameters】This is a linear guide rail slide stage table with stepper motor set, model: ggp, accuracy: 0.03mm, speed:40-100mm/s, horizontal load: 66lb-max11 lb,vertical load: 33 lb. Nema 23 stepper motor, voltage: 24v, torque: 0.9nm.
• 【High Quality】Professional nema 23 stepper motor with speed from40 to 100mm/s. And quality ball screw with accuracy up to ±0.03mm,also low noise when working.
• 【Large Length Stroke】Slide guide rail have large effective stroke, with 200mm/100mm linear rail for device. Which is creative design, durable material, beautiful appearance.
• 【Product Function】Linear slide rail is important hardware equipment that constitutes industrialized machinery can accurately control the accuracy and speed of the moving parts of mechanical equipment.
• 【Main Application】Length travel linear stage actuator is suitable for machine, placement equipment, laser cutting equipment, spraying equipment battery equipment and other industrial automation fields.
