145/70-6 Go Kart ATV Wheels Tire Rim, 40 Inch Rear Axle Kit, 48V 500W Differential Electric Motor, Brushless Controller, Brake Assembly for Drift Trike Golf Cart Quad Buggy Moped 4 Wheeler Tricycle

145/70-6 ATV UTV Wheel: Condition: 100% Brand New Color: Black Material: Nylon Size: 145/70-6 Rim: 6 inch Pattern: 3 Bolts Wheel Tall: 360mm (14.17 inch) Wheel Width: 135mm (5.31 inch) Bolt Space: 78mm (3.07 inch) Max load 160lbs (70kg) 4PR Rating tubeless 24 P.S.I max to seat beads 10 P.S.I operating pressure Rear Differential Split Axles Kit: Condition: brand new Material: metal Color: black Total length: 1020mm/ 40.16 inch Split Axle: 517mm/20.35 inch (plz check the size picture for the dimension specification) Fitment: for ATV UTV Go Kart Golf Cart Buggy Quad Lawn Mower Drift Trike Tricycle 4 Wheeler Brushless Differential Motor: Condition: brand new Material: metal Color: black Gear Ratio: 9.5:1 Torque: 1.8Nm Rated Speed: 3000rpm Rated Voltage: 48V Rated Output: 500W Rated Current: 15A Max Discharging Time : 160mins High Speed: 13mph Medium Speed: 10mph Low Speed: 8mph( under the load of 143lbs, and the weight of the bike is 154lbs) Protect Rate: IP54 Insulation Level: B Wire Length: 1320mm (51.97 inch) Motor length: 250mm (9.84 inch) Package Includes: 2 x 145/70-6 ATV Wheels 2 x rear differential split axles kit (comes with brake disc and hubs) 1 x 48V 500W Brushless Differential Motor 1 x Brushless Motor Controller 1 x Brake mater cylinder caliper assembly

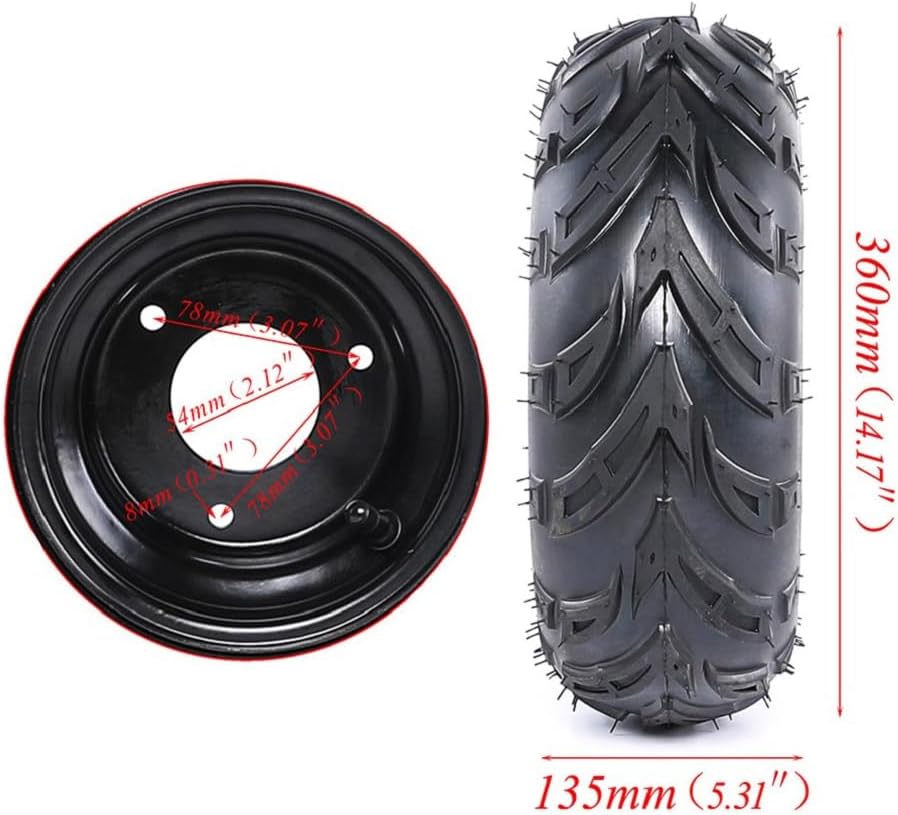

• 145/70-6 Wheel: 3 Bolts Pattern, 360mm (14.17 inch) in height, 135mm (5.31 inch) in width; Max load 160lbs (70kg), 4PR Rating tubeless, 24 P.S.I max to seat beads, 10 P.S.I operating pressure
• Rear Differential Axles Kit: 1020mm (40.16 inch) in total length, Made from high-strength metal, this rear differential split axles kit is built for toughness and durability to handle rugged terrains and heavy loads; Complete Rear Differential Axles Kit Includes 2 rear differential split axles, brake disc, and hubs, providing all necessary components for a smooth and easy installation
• 48V 500W Differential Electric Motor: Rated Voltage 48V, Rated Output 500W, Rated Speed 3000rpm; Gear Ratio 9.5:1, Torque 1.8Nm; Versatile Speed Options High - 13mph, Medium - 10mph, Low - 8mph (under specific load conditions)
• 36V-84V Brushless Motor Speed Controller: Supporting nominal voltages from DC 36V to 84V, rated power range of 1000W to 2200W; Under Voltage Protection 20V; Max Current 45A-60A
• Universal Fitment: Suitable for a wide range of vehicles, including ATVs, UTVs, Go Karts, Golf Carts, Buggies, Quads, Lawn Mowers, Drift Trikes, Tricycles, and 4-Wheelers

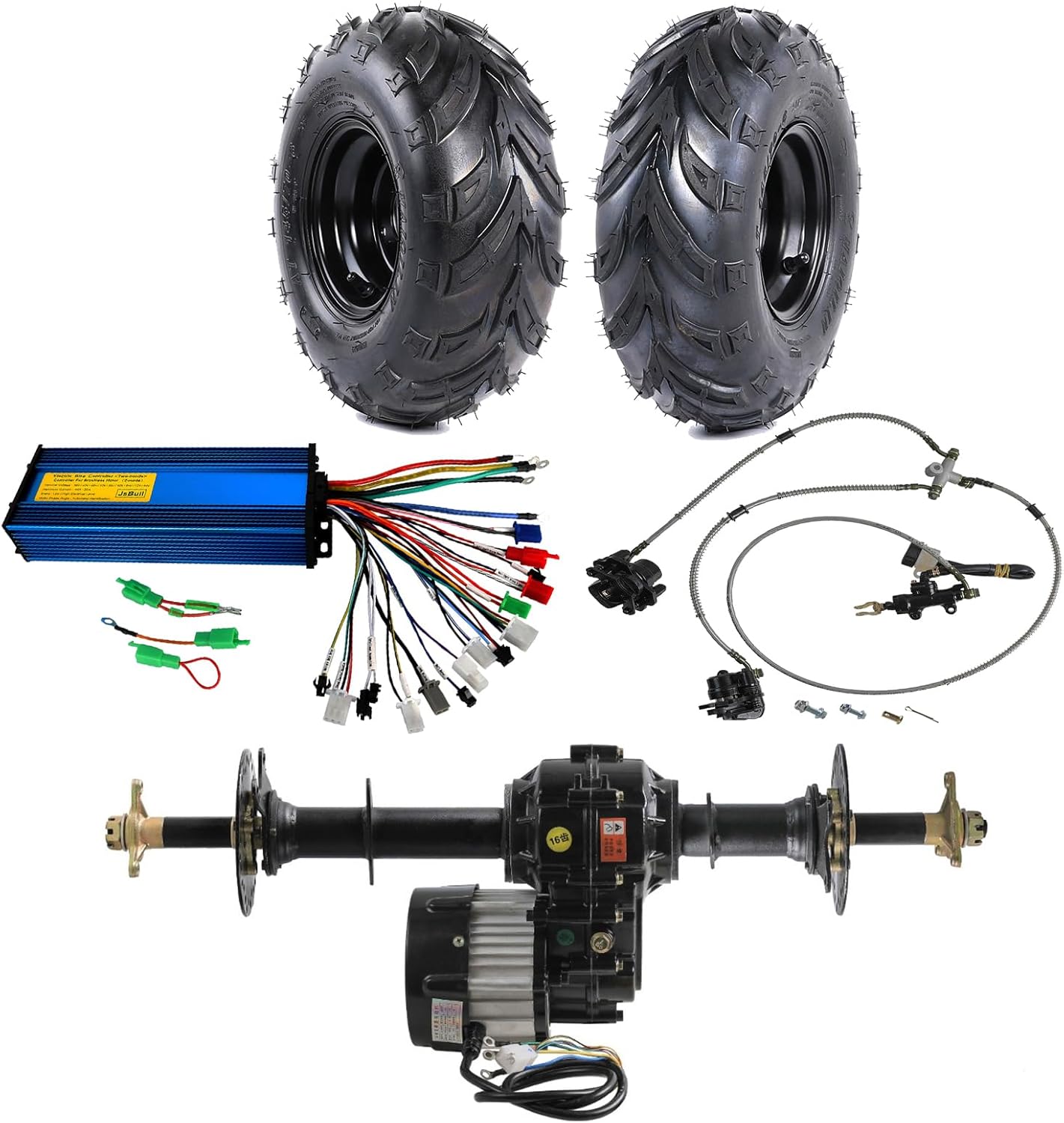

• Package Includes: 2 x 145/70-6 ATV Wheels; 2 x rear differential split axles kit (comes with brake disc and hubs); 1 x 48V 500W Brushless Differential Motor; 1 x Brushless Motor Controller; 1 x Brake mater cylinder caliper assembly
• Please Note: Please check out all details including size of the items before order, to make sure the item fits, thanks
