120 Amp MPPT Solar Charge Controller 12V 24V 36V 48V 60V 72V 84V 96V Auto Voltage 1440W-11520W Max Input Solar Panel Regulator for AGM Sealed Gel Flooded Lithium Batteries

Specifications:Photovoltaic panel input: 15V-230VBattery voltage to be charged: 12-96VWorking environment temperature: -20℃-40℃(Note: This product only has charging function, not 220v output function. Charging power calculation, for example, charging a 12v battery, 12*120=1440w, 24*120=2880w, and so on, the maximum can only support 96v.)Packing list:1*Solar controller1*Instruction manual

• 【Suitable Solar Panels】1440W(12V); 2880W(24V); 4320W(36V); 5760W(48V); 7200W(60V); 8640W(72V); 10080W(84V); 11520W(96V). Boasts a maximum PV input voltage of 230V for flexible system configuration. User programmable absorption voltage/floating voltage/low voltage disconnection, plus a loading timer for customized control. Operates reliably in temperatures from -20℃ to 40℃, adapting to diverse environmental conditions
• 【Multiple Protections】Automatically identifies 12V-96V system voltages, eliminating manual adjustment hassle. Its intelligent control limits charging power and current beyond rated values. Equipped with multi-layer safety safeguards: battery low/high voltage alarms, over-temperature, overload, and short-circuit protection. Maintains 110%-120% output for 30s before switching to bypass; triggers protection if output exceeds 160% for 300ms, ensuring stable and safe operation
• 【LCD Display】Clearly displays operating data and working status, real-time power statistics function, multiple load control modes, MPPTsolar chargers controller displays daily power generation curve and current curve. Built-in cooling fan, the fan will turn on when the temperature is >45℃, and the fan will turn off when the temperature is <40℃. The porous heat dissipation and fan use bearing technology, and the life can be extended to 5000 hours in normal use

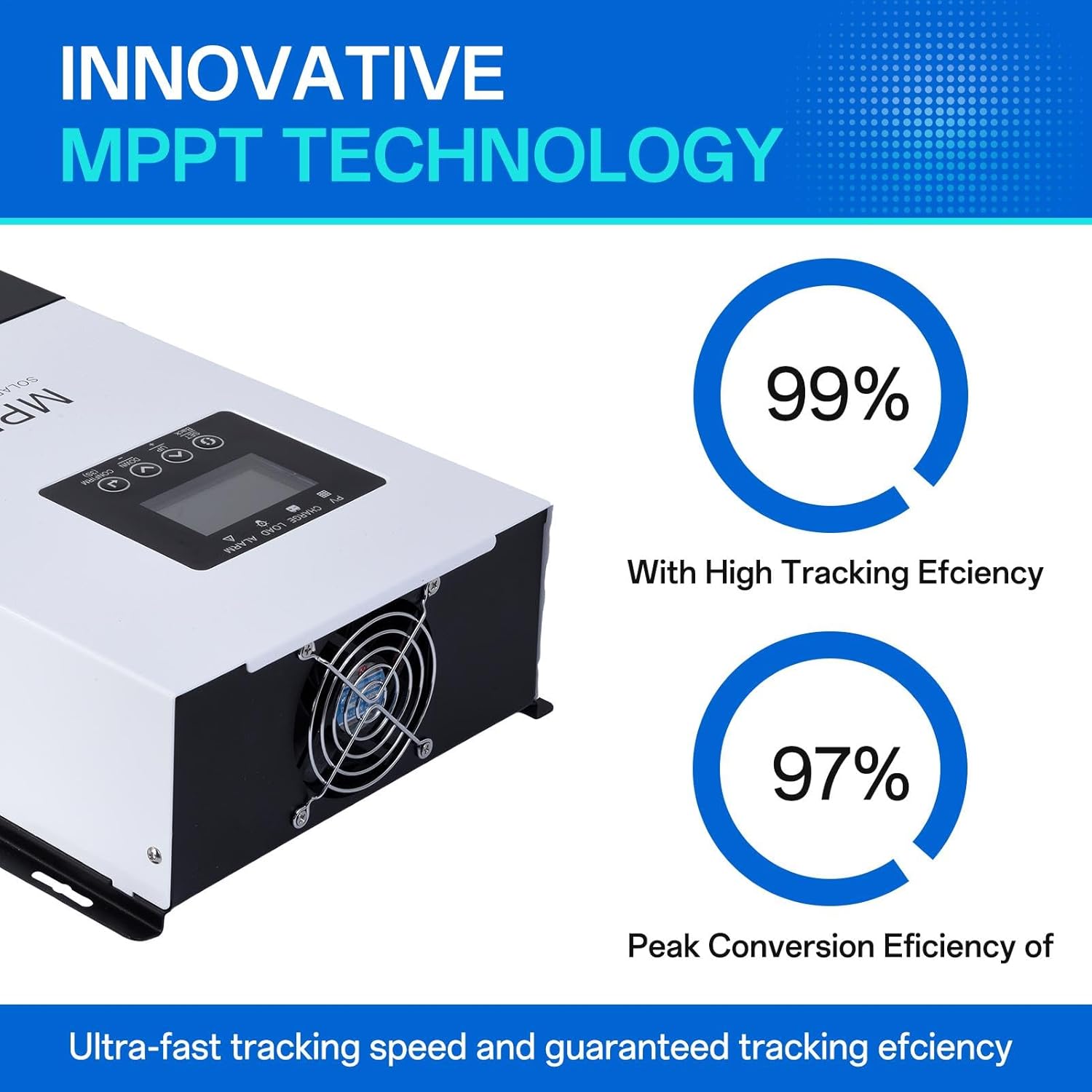

• 【Support Four Types of Battery Charging】Lead-acid battery (sealed, AGM, colloid, floodeds) and user-provided battery (lithium battery). The maximum power tracking rate is ≥99%, and the maximum conversion rate is >97%. Versatile applications include solar RVs, home solar systems, industrial site monitoring, and other off-grid or grid-tied setups, catering to both residential and commercial energy needs
• 【RS485 Communication】Comes with an RS485 communication interface, multi-machine communication, convenient to view the operating parameters of the controller. Support Wi-Fi remote monitoring (extra purchase required)-real-time wireless monitoring and simple parameter setting via mobile APP, with one-click factory reset functionality. Seamlessly integrates with multiple solar systems, enhancing operational convenience and flexibility for both individual users and large-scale installations
