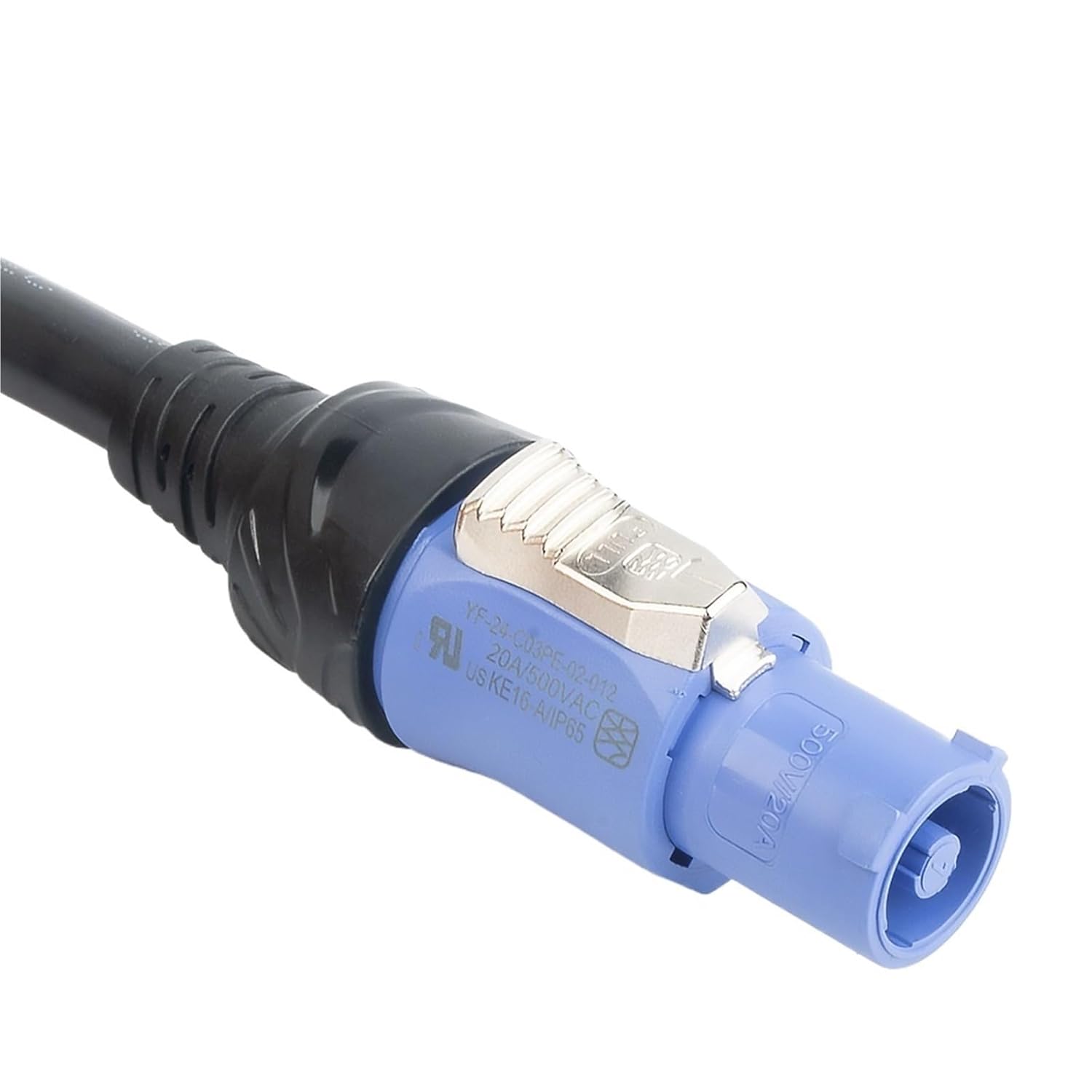

Industrial Connector 3 Pin Dual Plugs Powercon 20A Waterproof M24 Power Cable Connector w/ Extended 1.2m Cable(Male Plugs)

Electrical ConnectorIndustrial Connector 3 Pin Dual Plugs Powercon 20A Waterproof M24 Power Cable Connector with Extended 1.2m CableFeatures: Dual Plugs ConfigurationThe dual plugs configuration allows for easy connection and disconnection, enhancing convenience and efficiency.Industrial GradeConstructed with industrial-grade materials, this connector is built to withstand harsh conditions and prolonged use.High CapacityWith a 20A power rating, this connector can handle high currents, making it ideal for heavy-duty applications.Waterproof DesignThe Industrial Connector features a waterproof design, ensuring reliable performance in wet environments.M24 Power Cable ConnectorThe M24 power cable connector ensures secure and stable connections, reducing the risk of disconnections.SpecificationsConnecting modeLatching Lock connectProtection levelIP65/IP67Cable specification2.5mm2 ~ 4mm2 /14~12AWGDiameter range8mm ~12mmContact diameter×Qty2.0×3Current rating(A)20ATemperature rise20A contact temperature below 3025A contact temperature below 4030A contact temperature below 50Operating voltage(AC.V.rms)500VWithstanding voltage(AC.V)1min2500VContact resistance<;3mInsulation resistance>500MDurability500 mating&unmating cyclesTemperature rating40C80CMethod of connecting cableSolderAssembly wireSolderingPrevent the combustion levelUL94V0MaterialInsulated partsHighperformance engineering plasticsHardware metalZinc alloypearl hard chromium)Contact pinCopper alloy(gold-plated 4U)SpringStainless steelSealingSilica gelMain characteristicsSealed against dust and fluid (IP65/IP67)Vibration resistance, impact resistance, stretching resistancesocket with coverApplication industriesStage equipment - The smart grid - ServerSolar energy equipment - Ship equipmentElectric power equipment - Vehicle equipmentCommunications equipment - Heavy machinery==========Hign-concerned Chemical : NoneModel Number : YF-24Cable specification : 2.5mm²~4mm²/14~12AWGDiameter range : Tolerance 8mm~12mmContact diameter *number : Tolerance 2.0*3Insulation resistance(Min.) : 500 m omegaContact resistance(Max.) : 3 m omegaCurrent rating : 20AOperating voltage : 300VProtection Class : IP65Working temperature : -25 degrees Celsius~85 degrees CelsiusDurability(Min.) : 500 timesCable Length : 1.2mAssembly style : Soldering

• Industrial-Grade Durability – Built for high-performance electrical systems with robust connector design.
• 20A Compatibility – Supports high-current applications (20A) for reliable power transmission.
• Waterproof M24 Rating – Ensures safe operation in wet or harsh environments.
• 3-Pin Dual Plugs – Versatile connectivity for multiple devices.
• 1.2m Extended Cable – Flexible installation with extra .
